Wilkinson
High Output Single Coil Pickups
High Output Single Coil Pickups
Couldn't load pickup availability

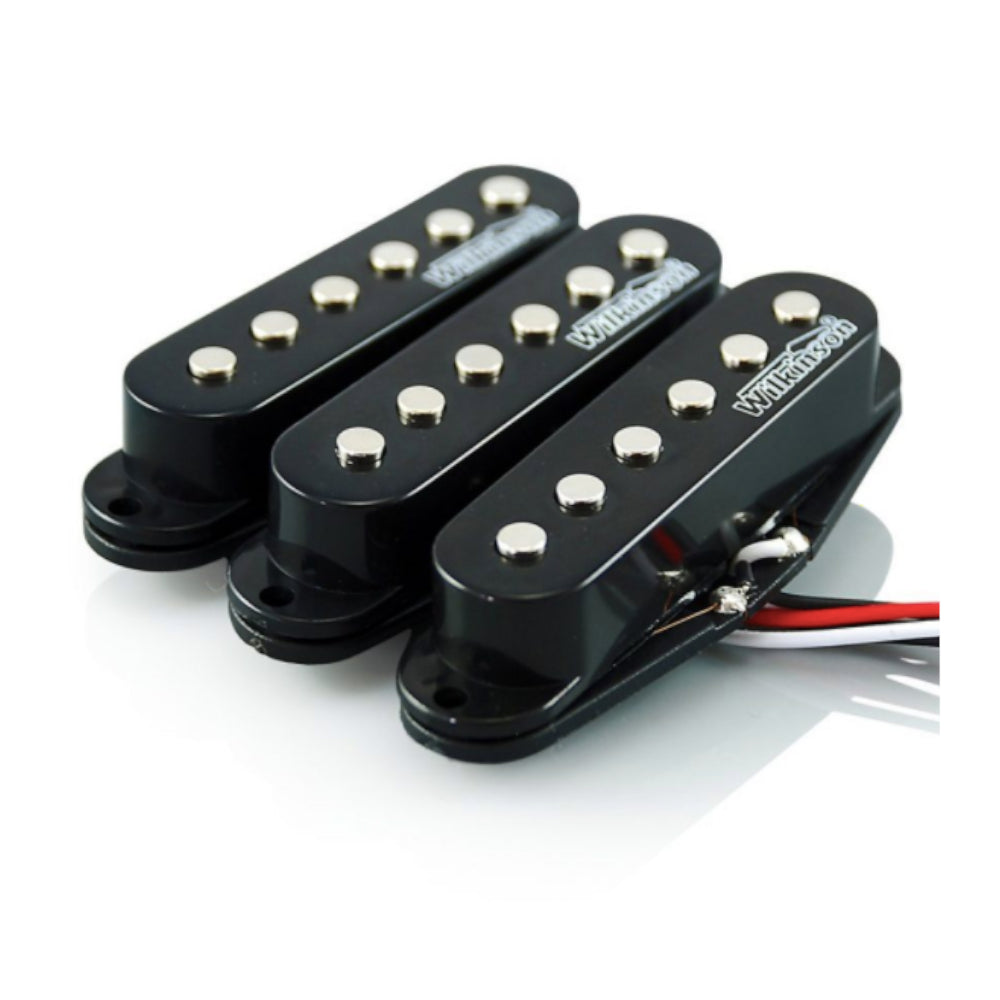

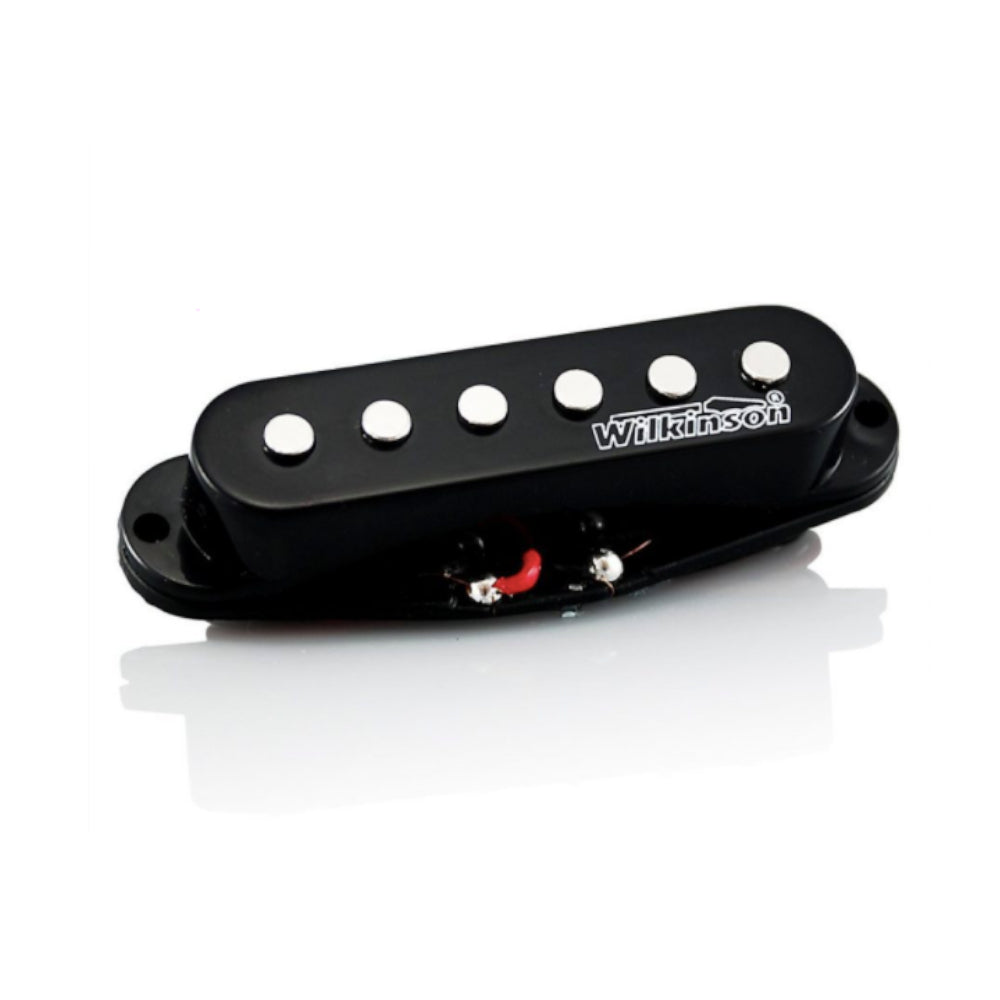

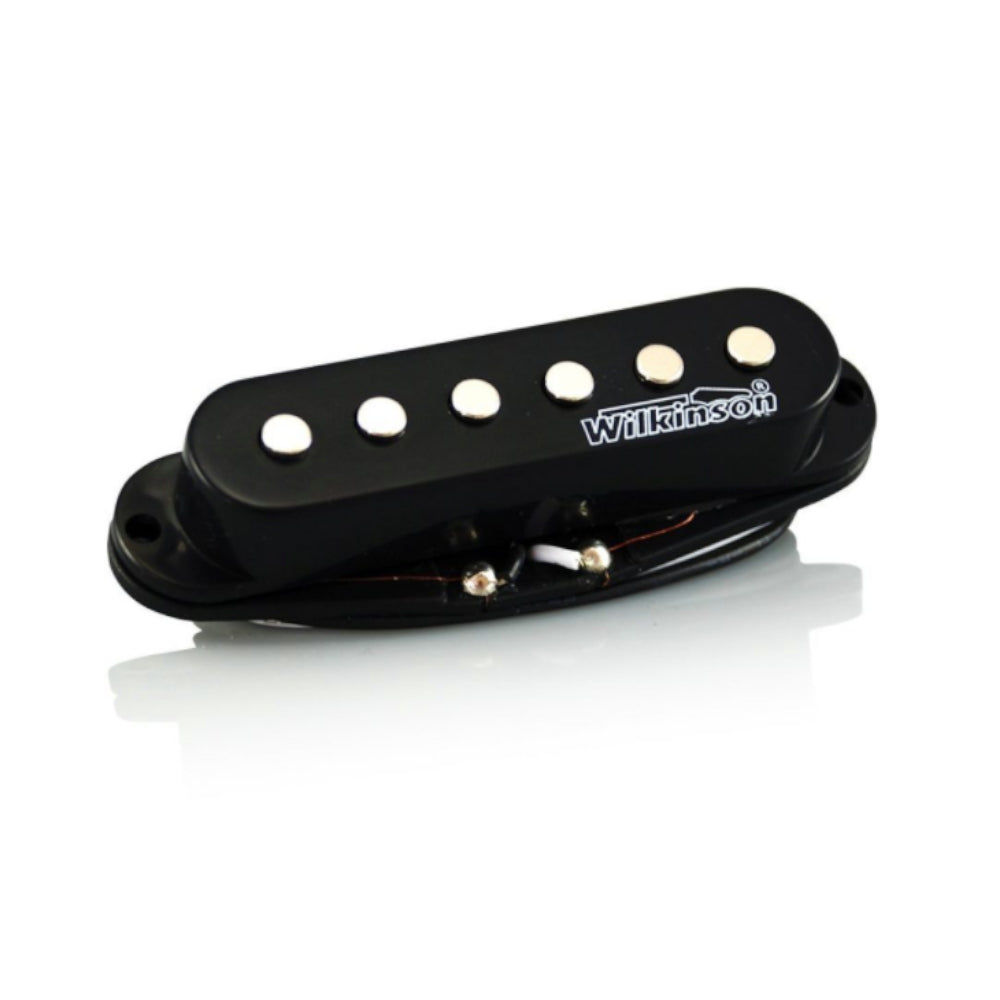

These are the higher output version of our Vintage Single Coils.
The poles are non-staggered which is ideal if you like to play with a lot of effects. They are rich in harmonics and have a natural sustain.
Strings tend to vibrate less near the bridge of the guitar and less vibration means less voltage and subsequently less volume. To compensate for this, the bridge pickup has been slightly overwound for better balance.
RESISTANCE | POLE SPACING | MAGNET | |
NECK | 5.4kohms | 50 mm | Ceramic |
MIDDLE | 5.5kohms | 50 mm | Ceramic |
BRIDGE | 6.1kohms | 52 mm | Ceramic |
Neck and middle single-coils are often the best choices if you are running a bridge humbucker.
Note: Price is per pickup (either neck, middle or bridge)
Tip: The middle pickup has a red wire. The neck and bridge pickups both have white wires but the bridge pickup is the one with poles that are farther apart.
